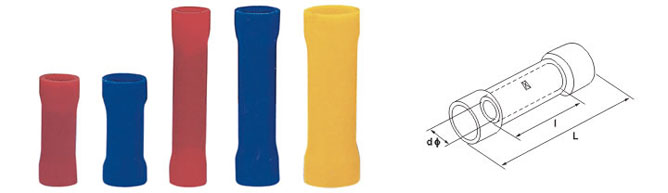

Paths : Home > Products > Terminals > Insulated Terminals > Short full insulation middle joint(TL-JTK type)
| Material:Copper Insulating Material:PVC | |||||||
| ITEMNO | Section of lead | Dimension (mm) | Max Current | Color | |||
| A.W.G | mm² | l | dΦ | L | |||
| PVT 1.25 | 22 - 16 | 0.5 - 1.5 | 8 | 1.7 | 16 | 19A | red |
| PVT 2 | 16 - 14 | 1.5 - 2.5 | 8 | 2.3 | 16 | 27A | blue |
| PVT 5.5 | 12 - 10 | 4 - 6 | 8.5 | 3.4 | 20.5 | 48A | yellow |
