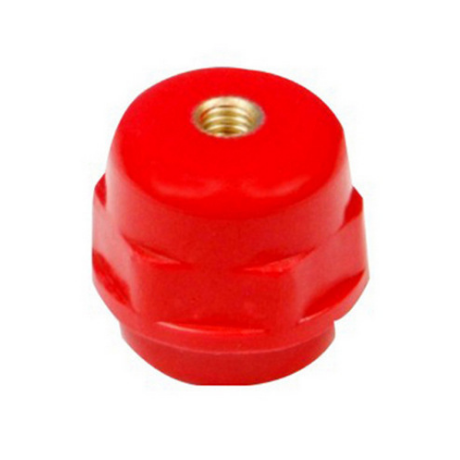

Paths : Home > Products > Bus Bar Insulator > TSM Bus Bar Insulator
Operating Temperature: -40~140℃
Insert: Brass, steel with Zn coated.
Material: BMC (Bough moulding compound)
SMC(Sheet moulding compund)
Good electrical resistance,heat resistance, fire resistance, low shrinkage and water resistance properities.
Remark: color, insert, material in capability accorance with customer needs.
| Item No. | Tensile Strength | Voltage Withstand | Torgue Strength | Screw | Screw Depth |
| (LBS) | (KV) | (FT LBS) | (mm) | (mm) | |
| TSM-20 | 300 | 4 | 4 | 5 | 7 |
| TSM-30 | 500 | 8 | 8 | 6 | 10 |
| TSM-402 | 550 | 8 | 10 | 6 | 13 |
| TSM-401 | 700 | 8 | 20 | 8 | 13 |
| TSM-40 | 1000 | 8 | 30 | 10 | 14 |
| TSM-50 | 1500 | 15 | 40 | 10 | 17 |
| TSM-55 | 2000 | 15 | 50 | 10 | 17 |
| TSM-70 | 1500 | 25 | 40 | 10 | 17 |
